Factory-Direct 3240 Epoxy Board | Fiberglass Reinforced, Uniform Thickness & Smooth Surface
Product Overview

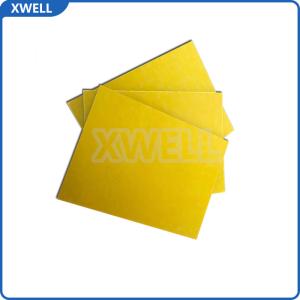

Our flagship product—Heat-Resistant Epoxy Glass Cloth Fiber Board (also called 3240 Board, Epoxy Fiberglass Sheet, or Insulating Glass Fiber Material Board)—is a high-performance laminated insulation material for tough industrial and electrical uses. Made via advanced lamination, it uses top-grade electrical alkali-free glass fiber cloth as the base and premium epoxy phenolic resin as the binder, formed into a uniform, dense, durable structure through soaking, baking, and hot-pressing.
Key Features
- High Heat Resistance: Meets Class B heat resistance standards (continuous operating temperature up to 130°C), maintaining stable mechanical and electrical properties even in high-temperature environments, with excellent resistance to thermal aging and deformation.
- Superior Insulation Performance: Offers excellent dielectric strength (rated voltage up to 600V) and low dielectric loss, providing reliable insulation protection for electrical components and preventing leakage and short circuits in high-voltage scenarios.
- Strong Mechanical Strength: Features high tensile strength, impact resistance, and dimensional stability—resisting warping or cracking under external pressure.
- Easy Precision Machining: With a smooth surface, it enables precise processes like cutting and drilling, resulting in neat edges without burrs, suitable for fine assembly needs.
- Customization Adaptability: Supports customized thickness and size per customer requirements, flexibly matching diverse installation and usage needs in industrial and electrical scenarios.
Technical Specifications
| Place of Origin |
Guangdong, China |
Brand Name |
xwell |
| Model Number |
3240 |
Type |
Insulation Sheet |
| Material |
fiberglass |
Application |
High Temperature |
| Rated Voltage |
40kv |
Tensile Strength |
340mpa |
| Color |
yellow, black, green |
sheet size |
customized |
| Density |
1.9 - 2.0 g/cm3 |
Thickness |
0.3mm - 80mm |
| Glass transition |
170℃ |
Permittivity |
4.8MHz |
Applications
- Battery Packs: Insulation layers for lithium-ion/NiMH batteries.
- Electrical: Switchgear, transformer oil barriers, high/low-voltage.
- Tooling & Molds: PCB/ICT, mechanical molds.
Why Choose Us?
- Flexible and diverse products with thousands of product specifications to meet the diverse needs of buyers.
- OEM and ODM designs and lables are welcome.
- The minimum order quantity is low and samples can be customized.
- Short production delivery cycle, fast delivery speed of the entire cabinet.
- Multiple payment methods facilitate customer payment.
